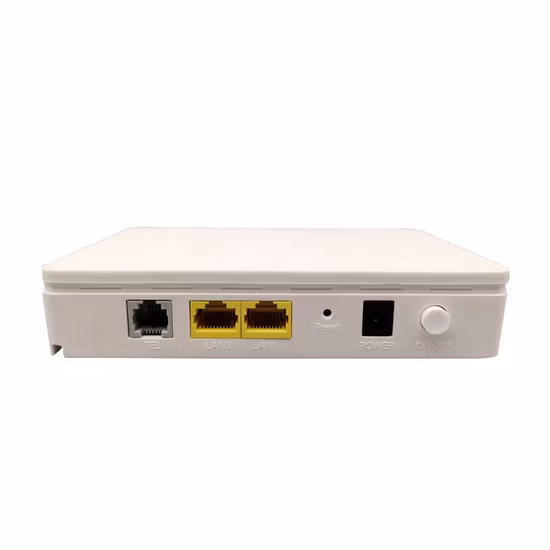

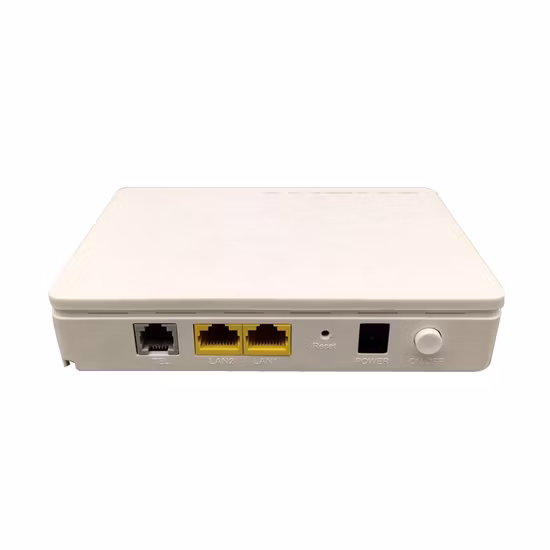

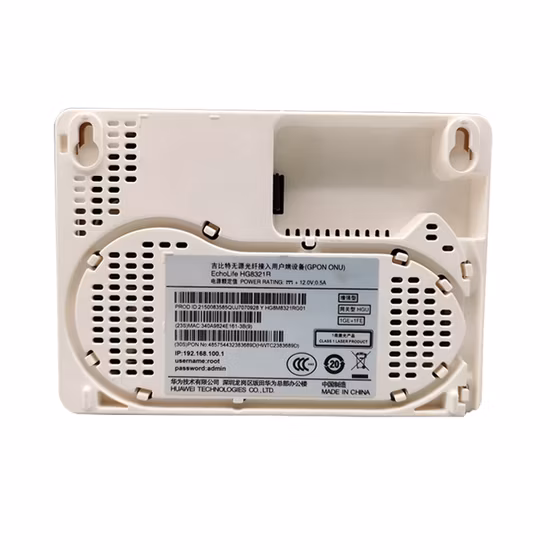

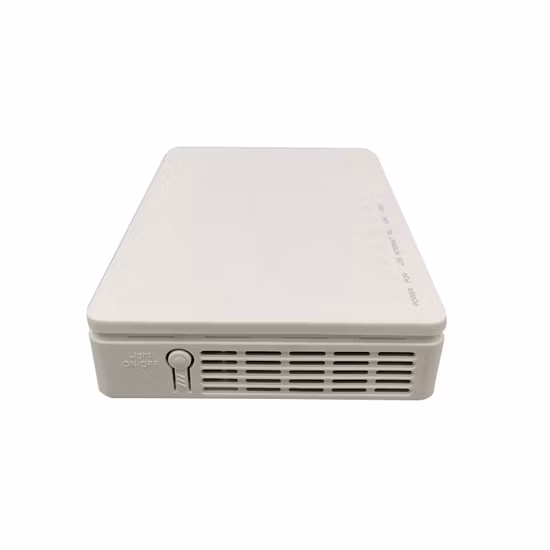

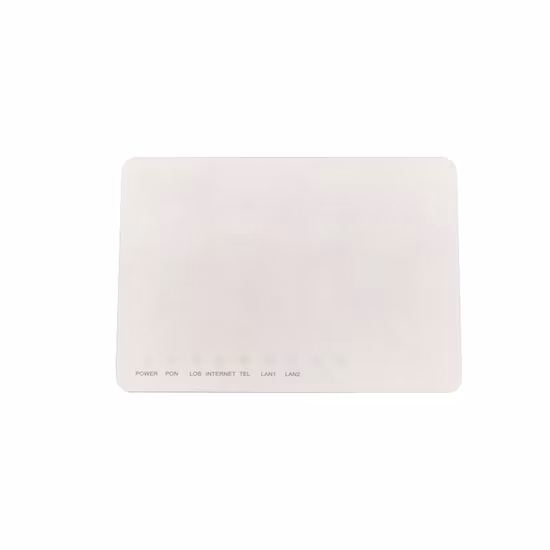

Cheap Price Big Style Huawei Hg8321r Gpon Epon Xpon 2fe+1tel Hgu ONU Support Ipv4/Ipv6 Firmware English Version Huawei Hg8120c
Basic Info.
| Model NO. | HG8321R GPON ONU, 1GE+1FE+1TEL |
| Pon Type | Epon Gpon Xpon |
| Compatible Olt | Huawei Zte Nokia Fiberhome Zte |
| Transport Package | Carton Box |
| Specification | 162*141*36mm/0.2kgs |
| Trademark | huawei |
| Origin | China |
| HS Code | 8517622990 |
| Production Capacity | 500000PCS/Month |
Product Description
Cheap Price Big style Huawei HG8321R GPON EPON XPON 2FE+1TEL HGU ONU Support IPV4/IPV6 Firmware English Version Huawei HG8321R working All Huawei OLT
Product Description
| Product Description | |
| Technical items | Descriptions |
| Model | HG8321R |
| Out Port contains | 2FE+1TEL |
| WIFI signal | NO |
| Wireless gain | NO |
| USB | NO |
| LAN | 1*10/100Mbps adaptive Gigabit ports, full/half duplex, RJ45 interface |
| TEL | H248/SIP Voice Protocol |
| PPPOE/BRIDGE | Support |
| Firmware | English |
| Dimension/weight | 135mm*115mm*25mm/158g |
| Fiber port | 1 GPON /EPON/XPON interface, ingle-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
| Wavelength | Tx 1310nm, Rx 1490nm |
| Fiber interface | SC/UPC/APC Dual mode/Singal mode |
| RX sensitivity | >-28dBm (1490nm) |
| DC power | 12V 0.5A, external AC-DC power adapter |
| Button | Reset,power |
| Operation | Working temperature: -5- +55ºC working humidity:10-90%(non-condensation) |
| Storage | Storage temperature: -30ºC- +60ºC storage humidity: 10-90%(non-condensation) |
| Feature | |
| 1.Plug-and-play: services can be deployed by one click on the NMS, and on-site configuration is not required. | |
| 2.Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulati | |
| 3.Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM. | |
| 4.High speed forwarding: 900 Mbit/s forwarding in the NAT scenario. | |
| 5.IPv6 Capability: support IPv6/IPv4 dual stack and DS-Lite. |
The HG8321R an optical network terminal (ONT), is a high-end home Bridge in FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The HG8321R: 2LAN+1POT The EG8120L features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the EG8120L provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. The EG8120L Provide English firmware and EU, US, UK, AU Power adapter for your choice. |
Features: · GPON Interface: 1 * GPON interface (SC/UPC) · Transmission Rate: 2.488Gbps downstream and 1.244Gbpsupstream · LAN: 2*10/100 Base-T interfaces with RJ-45 connector · VOIP: 1 |
Plug-and-PlayConfigurations are automatically delivered by the Network Management System (NMS), eliminating the need for on-site commissioning.Comprehensive Triple Play ServiceAbundant ports available to implement multiple access services, including home network attached storage, Internet access, and video.Energy EfficientSystem on Chip (SoC) integrate PON, gateway, and LAN Switch (LSW) modules, realizing up to 25% power savings.
ApplicationTypical Solution:FTTH(Fiber To The Home) Typical Business:INTERNET,IPTV,WIFI ,VOIP etc
