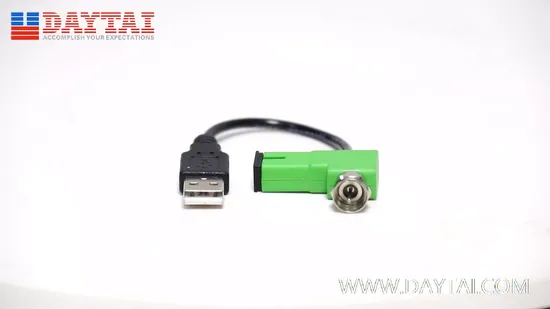

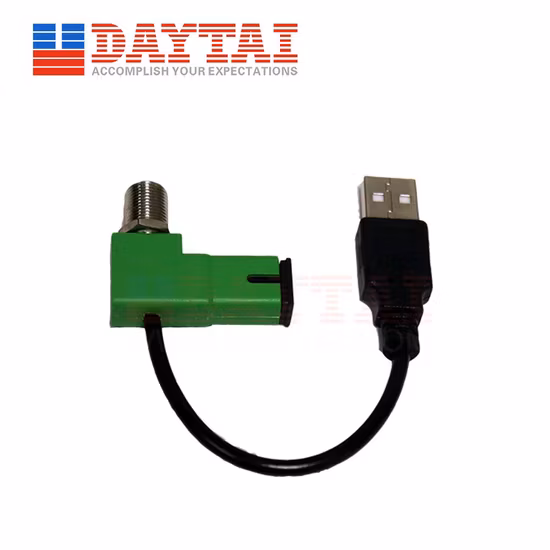

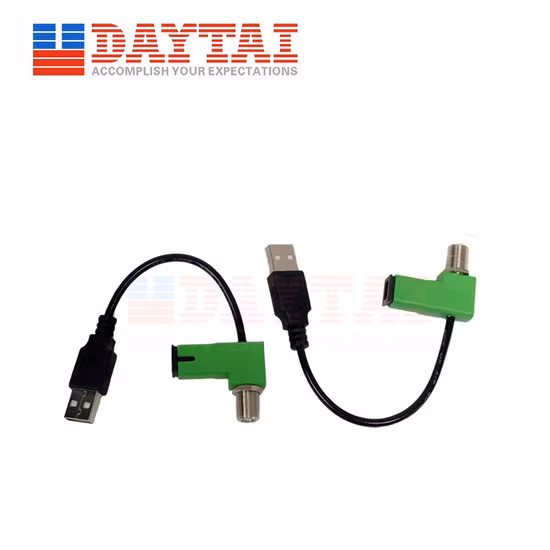

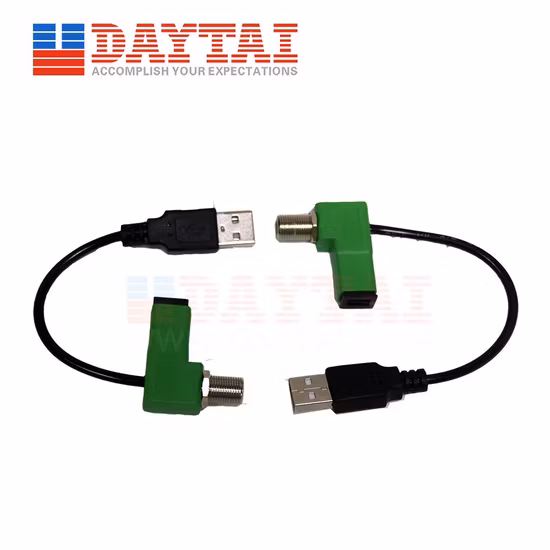

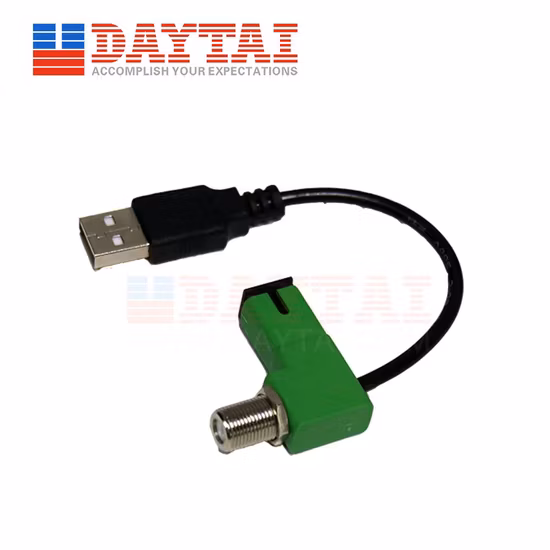

USB Type FTTH Node Mini Optical Receiver

Basic Info.

Model NO.	USB Optical Receover
Impedance	75 Ohm
Housing	49X16X12 mm
Weight	0.03kg
RF Output	F Male or F Female Connector
Operating Wavelength	1200/1600 Nm
Product Name	Ultra Low Power Optical Receiver
Transport Package	Carton
Trademark	DAYTAI
Origin	China
Production Capacity	20000 PCS/Month

Product Description

Description
DAYTAI Ultra Low Power Optical Receiver With USB Power Supply (DT-FFOR-USB),It' is a mini in-door optical receiver , design for FTTP/FTTH transmission applications. It delivers excellent frequency and distortion responses with low noise, high RF output, and 0.1W at 5V consumption.Operating Wave:1200/1600nm,Optical Power Input Range:-18~+2dBm,Optical Input Return Loss:≥45dB,Bandwidth:47~1003MHz,Flatness:±1.0dB,Slope:0~2.0dB,Output Level:>73dBuV,Impedance:75Ohm,Return Loss:≥10dB,RF Output:F Male Or F Female Connector,Dimension:49x16x12 mm,Weight:0.03kg.USB Power Supply:USB 5V Power Supply < 0.1W.Power Supply Cable Length:15CM OR Optional.
Features⊙1 GHz operating bandwidth⊙Ultra Low Power Consumption<0.1W⊙Lower input optical range:+2~-18dBm⊙Best for Home and Connect to Set-top box;⊙Output level up to 73dBuV (@0dBm power input);
Specification

Item	Specification
Description	Value	Unit	Conditions/Notes
Operating Wave	1200/1600	nm	1550nm Filter Optional
Optical Power Input Range	-18~+2	dBm
Optical Input Return Loss	≥45	dB
Bandwidth	47~1003	MHz
Flatness	±1.0	dB	47~1003MHz,At 25 ºC
Slope	0~2.0	dB	47~1003MHz,At 25 ºC
Temperature Stability	±1.5	dB	In the temperature range (-25~ +65 ºC)
Output Level	>73	dBuV	0dBm input optical power , in the 860MHz point test, at 25ºC
Impedance	75	Ohm
Return Loss	≥10	dB	At 25 ºC
MER	≥30	dB	-8~-5dBm input optical power
	≥24	dB	-15~-9, input optical power
Power	< 0.1	W	USB 5V Power Supply
User Interface
Optical Connector Type	SC/APC
RF Output	F Male Or F Female Connector
Housing	49x16x12 mm
Weight	0.03kg

Item	Specificatio
