1 Core 2 Core 4 Core FTTH Drop Cable G657A2 Fiber Optic Drop Cable Drop Wire Cable
1 Core 2 Core 4 Core FTTH Drop Cable G657A2 Fiber Optic Drop Cable Drop Wire Cable Description FTTH Cable directly conne
Basic Info.
Model NO. | fiber optic flat drop cable |
Brand | OEM |
Storage Temperature | -20 to +60 |
Color | Black |
MOQ | 1km |
Package | Wooden Reel |
Strength Member | 0.5 FRP/Metal Metal Strength |
Supporting Steel Wire | 1.0mm Steel Wire |
Fiber Type | G652D, G657A1,G657A2,G655 |
Cable Diameter | 3.0mm ,5.0mm , 7.0mm |

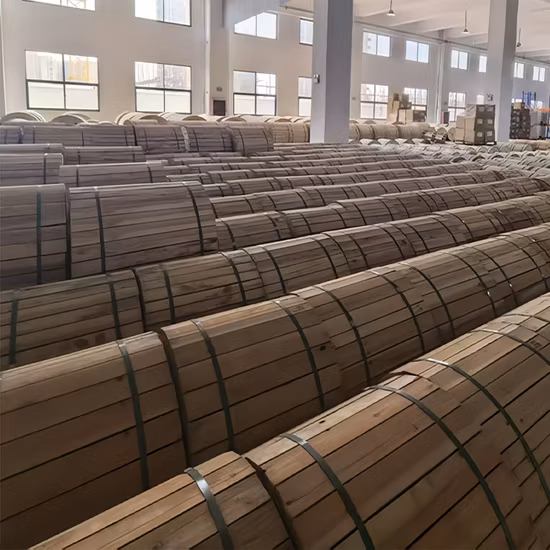

Transport Package | 1km or 2km/Reel Wooden Reel |
Specification | Single package size: 25X30X36 cm |
Trademark | OEM |
Origin | China |
HS Code | 85367000 |
Production Capacity | 10000km/Week |
Product Description
1 Core 2 Core 4 Core FTTH Drop Cable G657A2 Fiber Optic Drop Cable Drop Wire CableDescription
FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the centre. Two parallel strength member are placed at the two sides. A steel wire as the additional strength member is also applied ,then, the cable is completed with a black HDPE sheath.
Features
- Soft and bendable, easy to deploy and maintenance.- Smaller diameter, Light weight, and high practicability.- Fiber reinforced plastic as the strength member ensures excellent anti-electromagnetic performance.- Environmental protection- Low smoke, zero halogen and flame retardant sheath.
Application
-Adopted to indoor distribution.
-As pigtail of communication equipment
-Suitable for communication equipment servrd
-Can be installed conveniently and perated simply
Specifications
No. | Items | Unit | Specification | ||
G.657A1 | |||||
1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 | |
1550nm | μm | 10.1±0.5 | |||
2 | Cladding Diameter | μm | 124.8±0.7 | ||
3 | Cladding Non-Circularity | % | ≤0.7 | ||
4 | Core-Cladding Concentricity Error | μm | ≤0.5 | ||
5 | Coating Diameter | μm | 245±5 | ||
6 | Coating Non-Circularity | % | ≤6.0 | ||
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | ||
8 | Cable Cutoff Wavelength | nm | λcc≤1260 | ||
9 | Attenuation(max.) | 1310nm | dB/km | ≤0.35 | |
1550nm | dB/km | ≤0.21 | |||
10 | Macro-Bending Loss | 1turn×10mm radius @1550nm | dB | ≤0.75 | |
1turn×10mm radius @1625nm | dB | ≤1.5 |
Items | Unite | Specifications |
Tension(Long Term) | N | 100 |
Tension(Short Term) | N | 200 |
Crush(Long Term) | N/10cm | 1000 |
Crush(Short Term) | N/10cm | 2200 |
Min. Bend Radius(Dynamic) | mm | 20D |
Min. Bend Radius(Static) | mm | 5D |
Operating Temperature | ºC | -20~+60 |
Storage Temperature | ºC | -20~+60 |
