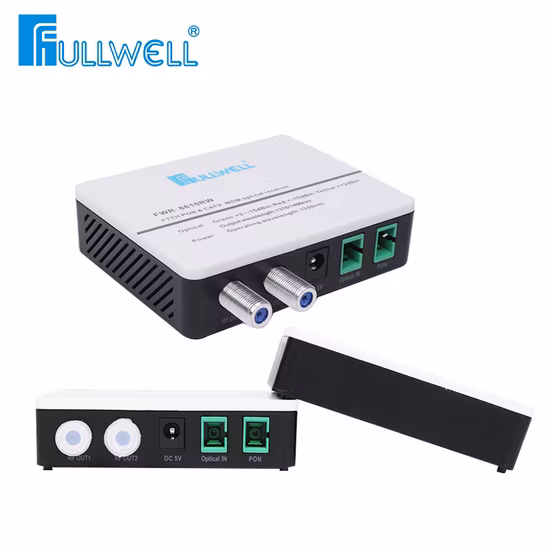

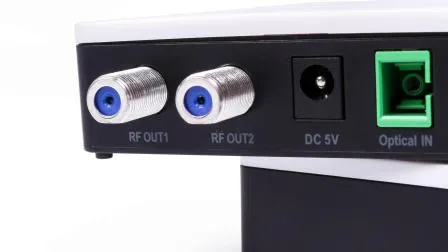

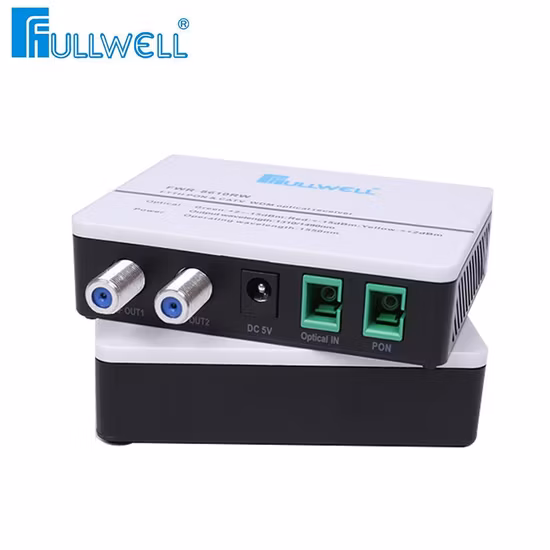

Fiber Optic / Optical Node FTTH Wdm Receiver for Analog &Digital TV

Basic Info.

Model NO.	Wdm Receiver
Keywords4	Wdm Receiver Node
Keywords2	Fiber Optic Wdm Receiver
Keywords1	Wdm Receiver
Transport Package	Safe Packaging, Thick Foam Box and Carton
Specification	110*63*23mm
Trademark	FIBCONET Technology
Origin	Ningbo, China
HS Code	3901100001
Production Capacity	800000 Pieces/Year

Product Description

Fiber Optic / Optical Node FTTH Wdm Receiver for Analog &Digital TV

Passive FTTH optical receiver with WDM is a household optical receiver with the final goal of fiber access. It is used in FTTH (fiber to the home) network to realize analog or digital signal access to the home.

Features:
---High quality plastic shell---Input power range +2~-10dBm.---No power supply, no power consumption---Output level≥65dBuv(PIN=+0dBm)

Application:
The optic receiver is a home-use optical receiver for FTTH (Fiber to the Home) network optical fiber access terminals to enable analog or digital signals to enter the home. The machine uses low-power photo detectors, GaAs and optical AGC technology to meet the fiber-to-the-home CATV reception needs. Many functional products are slightly different in application.
Parameters:

Model	OR19P	Output Level	≥65dBuv (Pin=0dBm)
Wavelength	CATV 1550nmPON 1310/1490nm	RF Output port	1
Optical input power	+2dBm~-10dBm	RF output impedance	75Ω
Return loss	>45dB	C/N(note 1)	≥51dB
Optical Connector	CATV: SC/APC, PON: SC/PC	CTB(note 1)	≥65dB
Bandwidth	40~1006MHz	CSO(note 1)	≥62dB
Flatness	±[email protected]~1006MHz	Working TEMP	-25ºC ~+45ºC
RF output loss	≥[email protected]~550MHz; ≥[email protected]~1006MHz	Size	108*103*26mm

Starting with the Copper age in 1992, FIBCONET has gone through nearly 18 years in the fiber optic communication area.
Now FIBCONET has 3 manufacturing centers, Ningbo, Guizhou, and Northeast China, covering more than 10,000 sqm,
owning 800 well-trained staff and engineers, reaching the production capacity of PLC Splitter in 300,000 pcs and fiber optical
connectors in 10 million pcs per month. As the national high-tech enterprise, FIBCONET also strives for more efforts in innovation.
50 patents, 15 invention patents have been attained.
FIBCONET focus on the fiber optical components, such as PLC splitter,
patch cord, , adapter, connectors, etc. Especially for the PLC splitter, can work in an extremely cold environment, even in the -50
centigrade degree, like in Russia, FIBCONET's PLC can still help transmit the optical signal very well, And if you hope to get the
0.1 dB for insert loss on your connectors, which is hard for the regular production, FIBCONET also can reach you.
FIBCONET supplies goods all over the world through trading companies and agents, like Corning in the USA, Vodafone in Europe,
Furukawa in Japan., etc. ISO9001, Rohs, and TLC certificates have already been approved by the market and our customers.
With the new corporate vision: To be the top supplier for the fiber optical components, "Keep connecting" is our Motto, not only means
that we produce the connectors and connect the fiber optic equipment, but also connect with the new technology, connect with every
FIBCONET person connect with our customers worldwide.
